Residual Current Circuit Breaker NF SEMKO VDE KEMA Certified, 6kV Rated Service Impulse Withstand Voltage

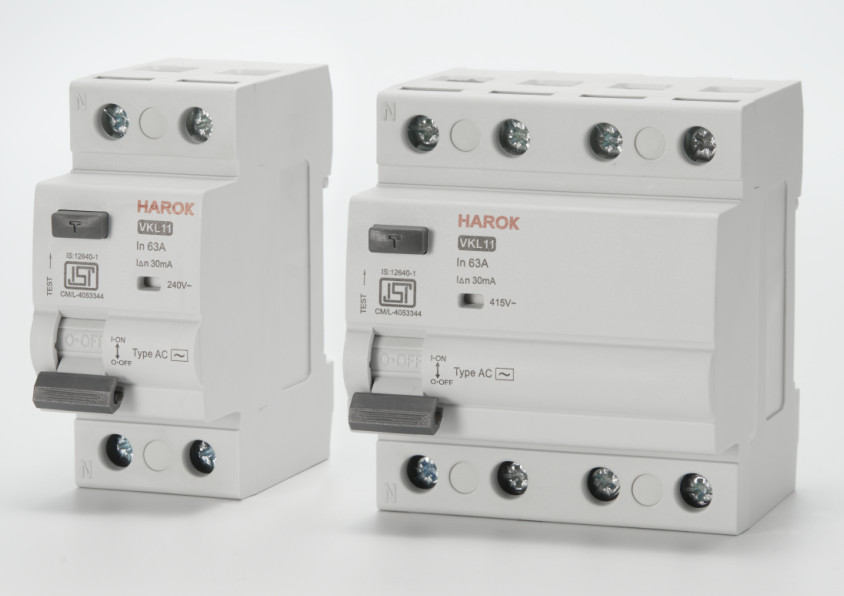

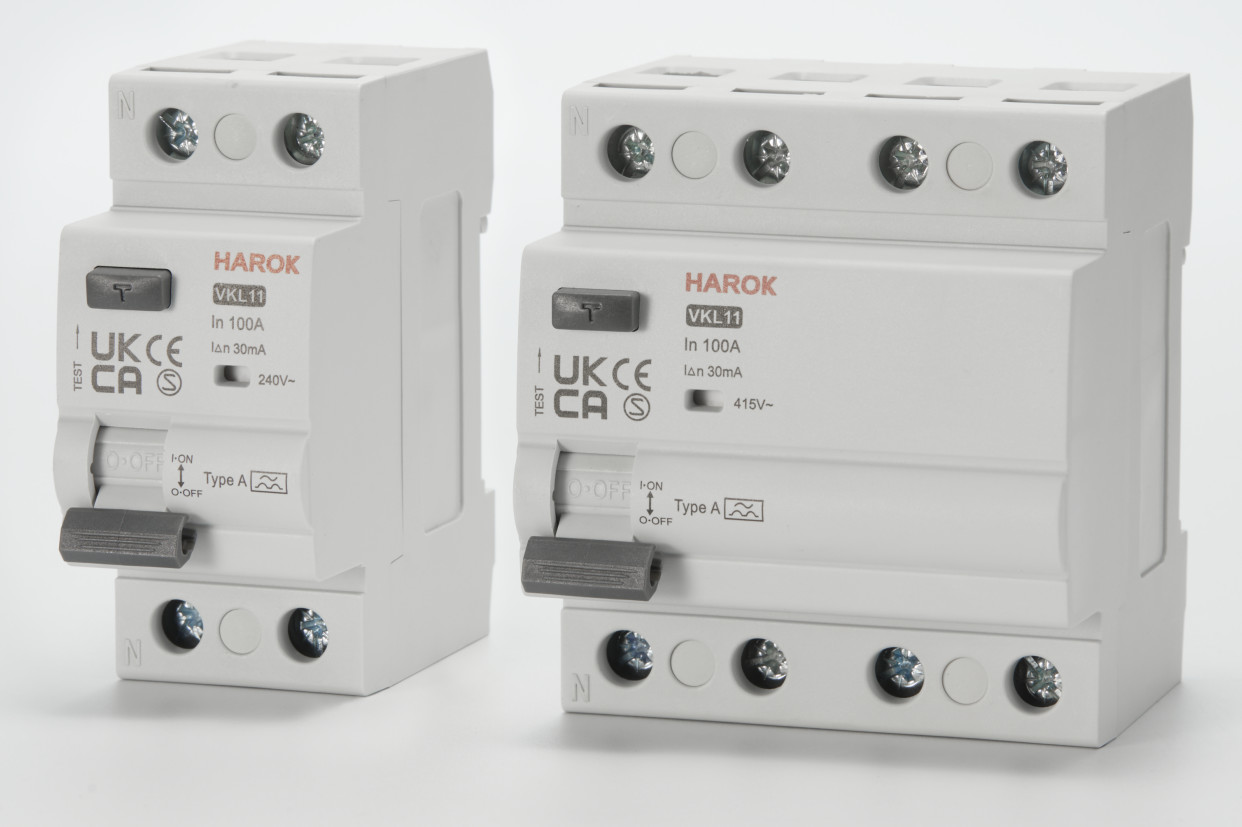

VKL11 Residual Current Circuit Breaker RCCB NF SEMKO VDE KEMA
1. General
1.1 RCCB Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 RCCB Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 RCCB Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.

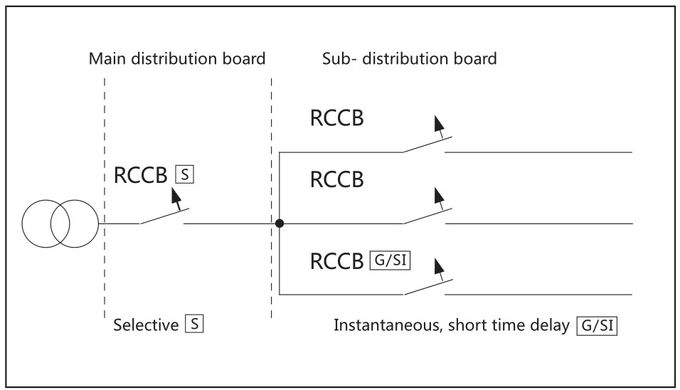

Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCCB | Residual Current Circuit Breaker
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |

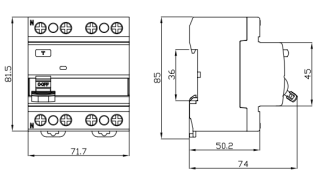

3. RCCB Outline and installation dimensions (mm)
Residual Current Circuit Breaker RCCB is an advanced EV type device, which is certified by NF SEMKO, VDE KEMA and Inmetro. It is designed to provide reliable protection against electric shock and fire caused by earth leakage current. It has a rated service impulse withstand voltage of 6kV, a rated short-circuit breaking capacity of 4kA, and a rated current of 30mA-100mA. It also has a rated residual operating current of 30mA-100mA and a rated residual non-operating current of 0.5mA-10mA. With the features of ultra safety and reliable protection, Residual Current Circuit Breaker RCCB is the perfect choice for residential and commercial use.
Product Name: Residual Current Circuit Breaker RCCB
Rated Residual Current Off-Time: ≤0.1s
Rated Frequency: 50/60Hz
Rated Residual Operating Current: 30mA-300mA
Rated Current: 16A-100A
Certifications: NF SEMKO VDE KEMA
HAROK VKL11 Residual Current Circuit Breaker (RCCB) is an important safety device used to protect electrical circuits from overload and short circuits. This type of circuit breaker, also known as Inmetro, is capable of detecting and interrupting any residual current, thereby providing protection against electrical shocks, electric currents, and overcurrents in electrical circuits.
The HAROK VKL11 RCCB features a rated short-circuit breaking capacity of 10kA and a rated insulation voltage of 500V. This type of circuit breaker is certified by NF, SEMKO, VDE, KEMA, ISI, and CE, and can be ordered in minimum quantities of 5000 pieces. Delivery times are typically 4-6 weeks after payment, with a maximum supply capability of 100,000 pieces per month.
The HAROK VKL11 RCCB is a reliable and safe device, with a rated residual operating current from 30mA to 300mA and a rated current from 16A to 100A. It is also backed by the following certifications: CE, ISI, NF, SEMKO, VDE, and KEMA.
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE
Minimum Order Quantity: 5000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Payment Terms: FOB NINGBO or SHANGHAI
Supply Ability: 100,000 PCS PER MONTH
Rated Insulation Voltage: 500V
Rated Short-Circuit Breaking Capacity: 10kA
Rated Ultimate Short-Circuit Breaking Capacity: 10kA
Rated Impulse Withstand Voltage: 4kV
Rated Service Impulse Withstand Voltage: 6kV
Residual Current Circuit Breaker RCCB
Residual Current Circuit Breaker Inmetro
Residual Current Circuit Breaker with ISI mark
