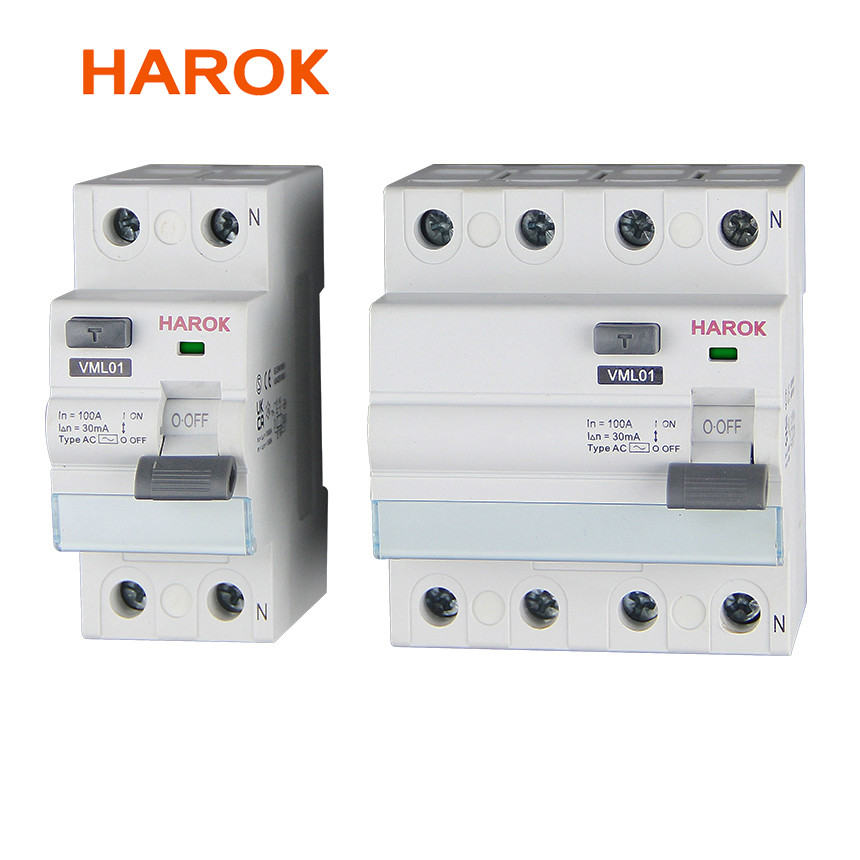

VML01 Residual Current Circuit Breaker type A, type AC, type ASi 30mA-300mA NF SEMKO VDE KEMA Inmetro
VML01 Residual Current Circuit Breaker RCCB Type A Type AC Type ASi Inmetro
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.

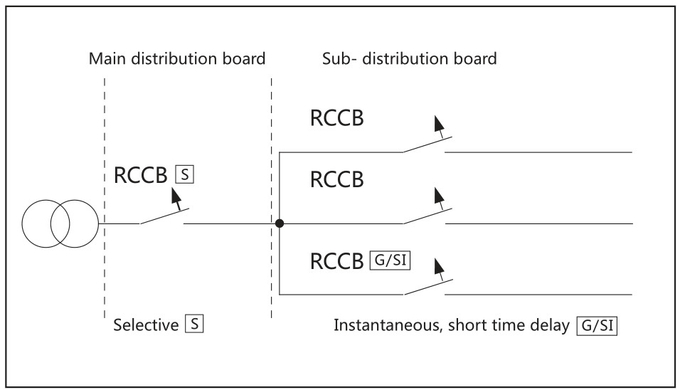

Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCCB | Residual Current Circuit Breaker
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VML01 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |

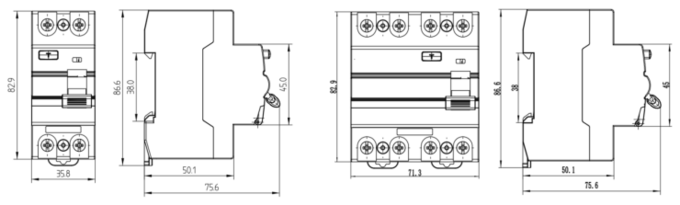

3. RCCB Outline and installation dimensions (mm)
Residual Current Circuit Breaker RCCB is a device designed to protect people and electrical equipment from the potential risks of electric shock. It features a rated voltage of 240/415V AC, and is certified by CE, ISI, NF, SEMKO, VDE, KEMA, Inmetro. In addition, it has a rated operating frequency of 50/60Hz, a rated current of 30mA-300mA, and a rated operating duration of ≤1s.
This Residual Current Circuit Breaker RCCB provides superior protection against electrical shock and is compliant with Inmetro, NF, SEMKO, VDE, Inmetro and KEMA standards. It is designed to detect and trip on residual currents as low as 30mA-100mA, and will trip within 1 second of current detection. This makes it the ideal choice for residential, commercial and industrial applications.
With its high performance and reliable design, the Residual Current Circuit Breaker RCCB is the perfect solution for ensuring safety and protection in any power system.
Product Name: Residual Current Circuit Breaker RCCB
Rated Voltage: 240/415V AC
Rated Impulse Withstand Voltage: 4kV
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA, Inmetro
Rated Ultimate Short-Circuit Breaking Capacity: 10kA
Residual Current Circuit Breaker NF SEMKO VDE KEMA: Yes, Residual Current Circuit Breaker RCCB is NF SEMKO VDE KEMA Inmetro certified.
Residual Current Circuit Breaker with ISI mark: Yes, Residual Current Circuit Breaker RCCB is ISI marked.
HAROK VML01 Residual Current Circuit Breaker (RCCB) is a reliable, safe and cost-effective device for preventing electric shock due to earth leakage current. It can be used for AC circuit with rated voltage of 240/415V and rated current of 30mA-300mA. It is designed to meet NF, SEMKO, VDE, KEMA, Inmetro, ISI and CE certifications, providing customers with the highest level of safety and reliability. The rated impulse withstand voltage of this RCCB is 4kV and the rated service impulse withstand voltage is 6kV, and the rated operating frequency is 50/60Hz.
This RCCB is widely used in residential and commercial buildings, as well as in industrial facilities, to protect the safety of personnel and equipment from electric shocks caused by earth leakage current. It can be used in a variety of applications, such as air-conditioning, lighting, power distribution, and electric welding. It is an ideal device for protecting personnel and equipment in harsh working environments.
HAROK VML01 Residual Current Circuit Breaker (RCCB) meets the highest safety and quality standards and is available in a minimum order quantity of 5000. The delivery time is 4-6 weeks after payment, and the payment terms are FOB NINGBO or SHANGHAI. This RCCB is supplied with a paper carton for easy storage and transport. With a capacity of 100,000 PCS per month, HAROK VML01Residual Current Circuit Breaker (RCCB) is the perfect solution for your safety needs.
| Parameters | Value |
|---|---|
| Rated Voltage | 240/415V AC |
| Rated Ultimate Short-Circuit Breaking Capacity | 10kA |
| Rated Frequency | 50/60Hz |
| Rated Operating Duration | ≤1s |
| Rated Current | 30mA-300mA |
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA, Inmetro |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4kV |
Brand Name: HAROK
Model Number: VML01
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE, Inmetro
Minimum Order Quantity: 5000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Payment Terms: FOB NINGBO or SHANGHAI
Supply Ability: 100,000 PCS PER MONTH
Rated Voltage: 240/415V AC
Residual Current Circuit Breaker type EV: Residual Current Circuit Breaker Inmetro
Rated Short-Circuit Breaking Capacity: 10kA
Rated Service Short-Circuit Breaking Capacity: 10kA
Rated Ultimate Short-Circuit Breaking Capacity: 10kA
Rated Residual Operating Current: 30mA-300mA
Packaging and Shipping of Residual Current Circuit Breaker RCCB
The Residual Current Circuit Breaker RCCB is packaged in a standard cardboard box with a styrofoam insert. The product is shipped in a sturdy cardboard box, with appropriate padding and seals to protect it during transit. All products are shipped via insured and traceable courier services.
