| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VSC-42 |
| High Light | Two In Two Out Splicing Connector,Splicing Connector 400Volt | ||
|---|---|---|---|

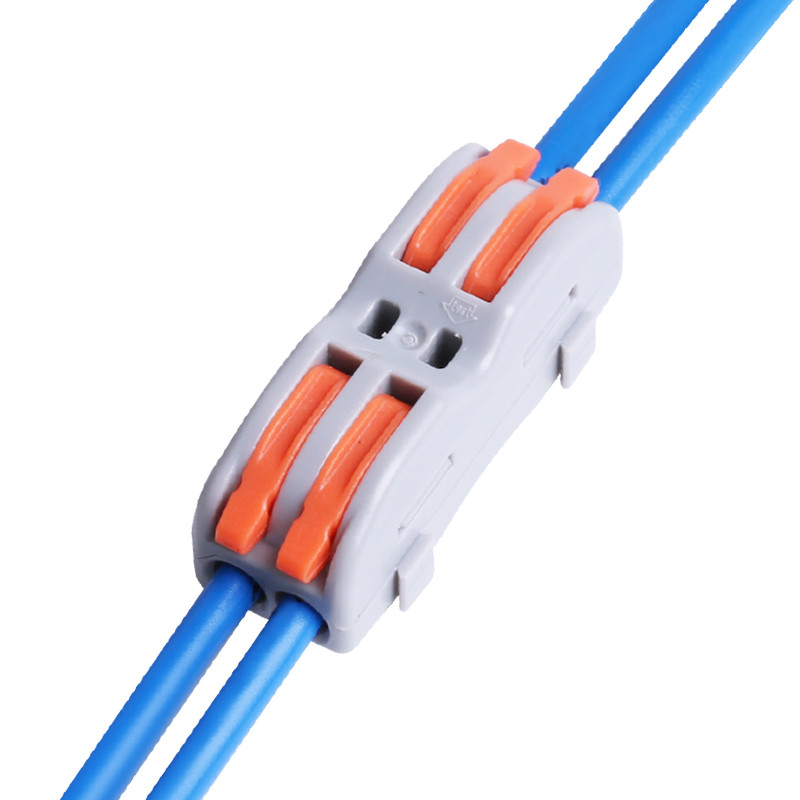

VSC-42 Type fast wiring connector
Rated voltage : 400V
● Rated current : 32A
● For solid wire and fine-stranded wire
| ITEM No. | Wire range | Connectiing wire numbers | Wire strip length(mm) | Color |
| VSC-422A | 0.08~4 mm² / 28~12 AWG | two in-two out | 9~10 mm / 0.35~0.39 in | Gray body Orange handle |
| VSC-423A | three in-three out | |||
| VSC-422W | two in-two out | Transparent white Orange handle | ||
| VSC-423W | three in-three out |
| ITEM No. | Wire range | Connectiing wire numbers | Wire strip length(mm) | Color |
| VSC-422A2 | 0.08~4 mm² / 28~12 AWG | two in-two out | 9~10 mm / 0.35~0.39 in | Gray body Tri-color handle |
| VSC-423A3 | three in-three out | |||
| VSC-422W2 | two in-two out | Transparent white Tri-color handle | ||
| VSC-423W3 | three in-three out |
