| Brand Name | HAROK |
|---|---|
| Model Number | CKM SERIES |
| Minimum Order Quantity | 3000 |
| Rated Voltage(V) | 450VAC | Rated Current(A) | 32A |
|---|---|---|---|
| Connection Capacity | 0.08-4mm² | Type Of Electric Connection | Equipotential |
| Working Temperature | -40℃ To 105℃ | Strip Length | 11mm/0.43 Lnch |
| High Light | 450VAC Splicing Connector,32A Push Quick Wire Cable Connector | ||

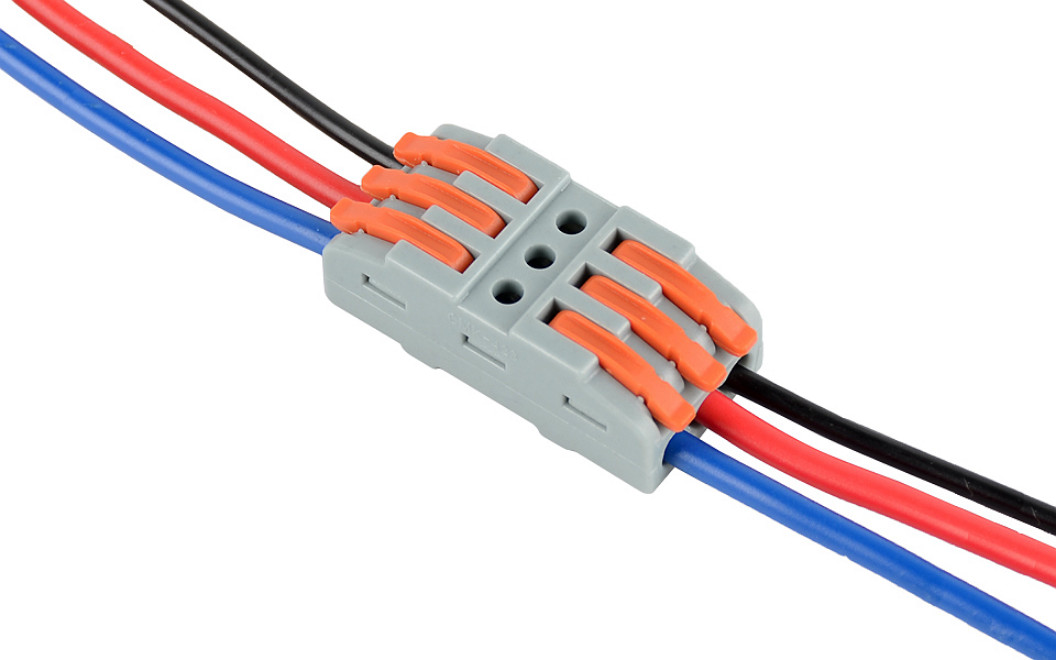

Splicing Connector

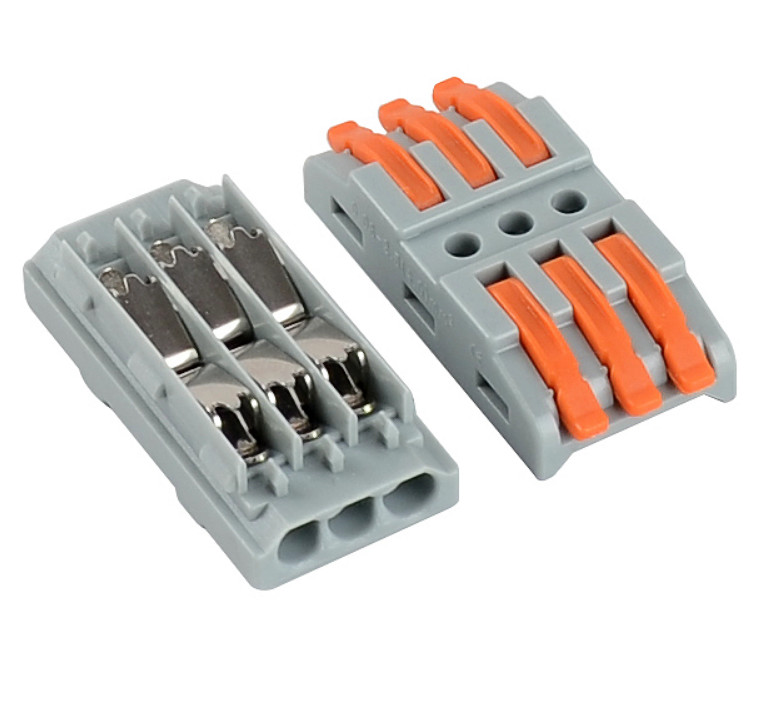

PUSH IN QUICK-CONNECTORS
Material of connectors shell: polycarbonate PC
Material of actuating levers: polyamide Pa66

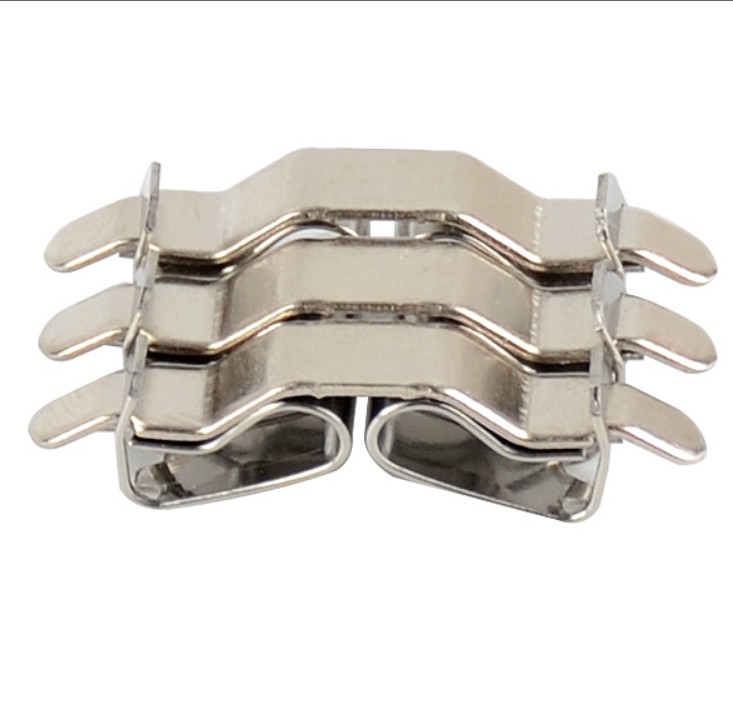

Material of conductive parts: Thinned copper
Material of contact springs: AISI 301 stainless steel
Rated voltage(V): 450VAC
Rated current(A): 32A
Connection capacity: 0.08-4mm²
Type of electric connection: equipotential
Working temperature: -40℃ to 105℃
Strip length: 11mm/0.43 lnch
PRODUCT CODE | No.of circuits | flexible wire mm² | rigid wire mm² | Volt (V) | Ampere (A) | Un |
Un |
| CMK-401 | 2 | 0.08→2.5 | 0.2→4 | 450V | 32A | 50 | 3000 |
| CMK-422 | 4 | 50 | 1500 | ||||
| CMK-423 | 9 | 50 | 1200 | ||||
| CMK-424 | 8 | 50 | 1000 | ||||
| CMK-425 | 10 | 50 | 1800 | ||||
| CMK422-4 | 6 | 0.08→2.5 | 0.2→4 | 450V | 32A | 50 | 3000 |
| CMK422-6 | 8 | 50 | 3000 | ||||
| CMK421-2 | 3 | 0.08→2.5 | 0.2→4 | 450V | 32A | 50 | 3000 |
| CMK421-3 | 4 | 50 | 3000 |
