| Brand Name | HAROK |
|---|---|
| Model Number | BESTAFDD 1 |
| Minimum Order Quantity | 3000 |
| Poles | 1P+N(1Module) | Rated Current (AC) | 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A |
|---|---|---|---|
| Tripping | B, C | Operating Frequency | 50Hz |
| Rated Voltage(AC) | 240V | Rated Short-circuit Current | 6KA |
| High Light | 30mA Combined AFDD RCBO,32A Combined AFDD RCBO,CE afdd rcbo combined | ||

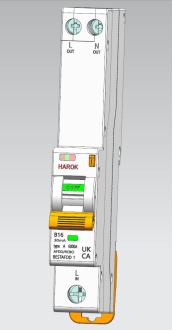

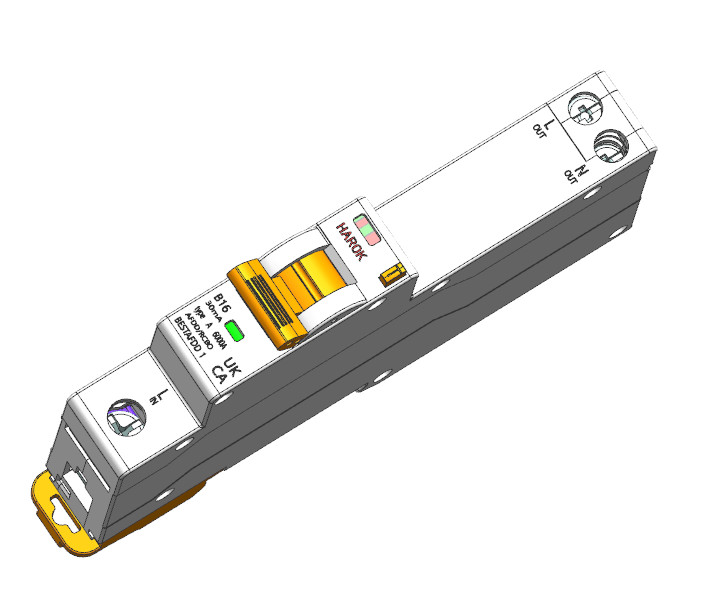

Arc fault detection devices BESTAFDD 1
Residual current operated circuit-breaker with integral overcurrent
protection as Fire protection switch,sensitive to pulsating and
alternating currents Type A
Function
Arc-fault detection devices(Fire protection switch, AFDD) are designed to protect serial and parallel fault arcs in accordance with EN62606(DIN VDE 0100-420).They are commonly referred to as fire protection switches. They must be installed in permanently installed final circuits up to 40A. for example. facilities at risk of fire or public institutions.They are also recommended for bedrooms and for final circuits with high connection loads.The devices detect high-frequency arc faults, such as those occurring as a result of cabling defects. The early recognition and switching off of the final circuit. which may occur as a result in the case of an emergency. prevent thermal effects of arc faults The risk of fire resulting from incorrect electrical installation is significantly reduced.The reason for tripping is indicated by an LED colour code on the front of the device. BESTAFDD 1 are compact combination devices with a triple function: arc fault detection, line protection and residual current trip.They protect systems in the event of a short-circuit and overload as per the requirements of VDE o1o Part 430, and protect persons,farm animals and material items in the event of earth leakage currents as per VDE 0100 Part 410.The RCBO component works dependent of the mains voltage.Residual current type A allows the detection of sinusoidal AC currents and pulsating DC residual currents. The contact position indicators and the display tripped by residual current provide a quick overview of the operating status of the device. The devices up to 40 A devices have a rated switching capacity of 6 kA.The line protection with characteristic B ensure standard protection for lighting and socket circuits. Devices in standard design are intended for monitoring circuits with a rated voltage of 230 V and a rated frequency of 50 Hz.
Features
combination device with three functions, 1P+N(1Module), Variable neutral-pole position, AFDD as per IEC/EN-62606, RCBO as per IEC/ EN61009, continuous self-monitoring, mains-voltage-dependent tripping of the RCCB/MCB functions. Display AFDD reason for tripping. Contact position indicators, Residual current tripping indicator, compact design for all rated currents, high short-circuit resistance, strain-relief clamps with protection against wires being lodged behind them, tri-stable snap-in slider for easy mounting and removal.
Applications
Protection of circuits in residential and purpose-built buildings as well as industrial facilities with TN-S and TN-C-S networks. Not permitted for use in systems with TN-C networks; not permitted for protecting circuits in which the power electronics equipment may cause smooth DC residual currents or residual currents with frequencies not equal to 50 Hz.
| Performance | |
| Series | BESTAFDD 1 |
| Number of poles | 1P+N(1Module) |
| Rated current (AC) | 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A |
| Residual current type | A |
| Rated residual current I∆n | 10mA, 30mA |
| min. Operating voltage range of test circuit | 196V |
| max. Operating voltage range of test circuit | 253V |
| Tripping characteristic | B, C |
| Operating frequency | 50Hz |
| Rated impulse withstand voltage | 4 kV |
| load circuit | |
| Specification | load disconnect contact |
| Rated voltage(AC) | 240 V |
| Rated short-circuit current | 6KA |
| Surge current strength | 0.25kA |
| max. total rated switching capacity | 6kA |
| Rated insulation voltage | 250V |
| Current heat loss per current path | 3W |
| short-circuit backup-fuse SCPD | 100A |
| Back-up fuse type | gG |
| Overvoltage class | III |
| screw-type terminal top, bottom(load circuit) | |
| Neutral conductor position | left, right |
| max. Connection C1cable length | 70m (between the distribution board and the outer socket) |
| Clamping area | 1 mm² .… 25 mm² |
| Tightening torque | 2 Nm.…. 2.4 Nm |
| General data | |
| Mechanical endurance | min. 20000 switching cycles |
| Electrical endurance | min.400o switching cycles |
| Storage temperature | -35℃ ….60℃ |
| Ambient temperature | -25°℃… 40℃ |
| Housing type | distribution board housing |
| Installation type | Mounting rail (35 mm) |
| Housing material | thermoplastic |
| Protection class | IP20(installed:IP40) |
| Design requirements/Standards | EN62606, EN61009-1 |
| Power limitation category | 3 |
Degree of pollution according to EN 60664 | 2 |
| Certification | UKCA, CE |
Combined AFDD RCBO is a residual current operated circuit-breaker with integral overcurrent protection as fire protection switch,sensitive to pulsating and alternating currents Type A. It is designed to protect people from electric shock and fires caused by earth leakage current and overcurrent. The product is made of thermoplastic material, with a rated frequency of 50/60Hz and a protection level of IP20 (when installed: IP40). It has a minimum electrical endurance of 4000 switching cycles, and can be installed on mounting rail (35mm).
Product Name: Combined AFDD RCBO
Housing type: Distribution Board Housing
Rated Current: 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A
Storage temperature: -35℃ ….60℃
Electrical endurance: Min.4000 Switching Cycles
Degree of pollution according to EN 60664: 2
Featured with Arc fault detection devices (AFDD) and RCBO
The HAROK BESTAFDD 1 Combined AFDD RCBO is the perfect choice for all your electrical safety needs, providing both Arc Fault Detection Devices (AFDD) and a Residual Current Circuit Breaker (RCCB) for reliable and comprehensive protection against electric shocks and fires. This advanced device is certified with UKCA and CE, with 240V AC rated voltage, 50/60Hz rated frequency, and 250V rated insulation voltage. It is also available in a range of rated current options, including 6A, 10A, 13A, 16A, 20A, 25A, 32A, and 40A.
The HAROK BESTAFDD 1 provides perfect protection for homes and businesses against arc faults and other hazardous conditions, such as unintentional contact with live parts, short circuits, and overloading. This device can be used in a variety of residential, commercial, and industrial locations, such as offices, shops, factories, and warehouses. It is an ideal choice for anyone looking for a reliable and cost-effective solution to protect against electric shocks and fires.
The HAROK BESTAFDD 1 is easy to install and maintain, making it the perfect choice for anyone looking for a reliable, efficient, and cost-effective solution to protect against arc faults and other hazardous electrical conditions. This device is the perfect combination of Arc Fault Detection Devices (AFDD) and Residual Current Circuit Breaker (RCCB) to ensure comprehensive safety for your electrical systems.
| Property | Value |
|---|---|
| Mechanical endurance | Min. 20000 Switching Cycles |
| Rated residual current I∆n | 10mA, 30mA |
| Housing material | Thermoplastic |
| Ambient temperature | -25°℃… 40℃ |
| Product Name | Combined AFDD RCBO |
| Installation type | Mounting Rail (35 Mm) |
| Tripping characteristic | B, C |
| Rated Frequency | 50/60Hz |
| Electrical endurance | Min.4000 Switching Cycles |
| Degree of pollution according to EN 60664 | 2 |
| Type | Residual current operated circuit-breaker with integral overcurrent protection as Fire protection switch,sensitive to pulsating and alternating currents Type A, RCBO |
We offer the custom service for Combined AFDD RCBO of HAROK BESTAFDD 1, with original place of origin in CHINA. It features Tripping characteristic B and C, Thermoplastic housing material, Mounting Rail (35 Mm) installation type, -25°℃… 40℃ ambient temperature, and Power limitation category 3. This Combined AFDD RCBO integrates the technology of Arc fault detection devices and Arc fault detection devices with overload protection, to provide you with reliable performance.
