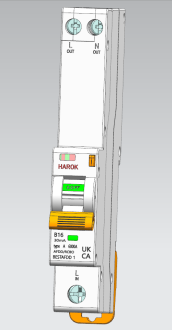

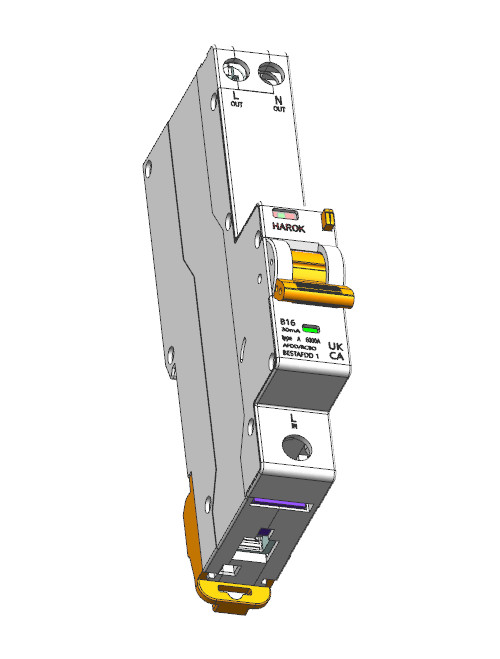

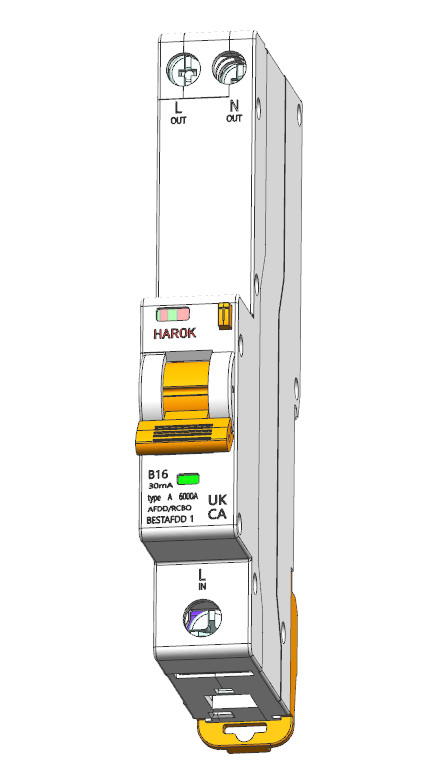

Arc fault detection devices BESTAFDD 1

Residual current operated circuit-breaker with integral overcurrent

protection as Fire protection switch,sensitive to pulsating and

alternating currents Type A

Function

Arc-fault detection devices(Fire protection switch, AFDD) are designed to protect serial and parallel fault arcs in accordance with EN62606(DIN VDE 0100-420).They are commonly referred to as fire protection switches. They must be installed in permanently installed final circuits up to 40A. for example. facilities at risk of fire or public institutions.They are also recommended for bedrooms and for final circuits with high connection loads.The devices detect high-frequency arc faults, such as those occurring as a result of cabling defects. The early recognition and switching off of the final circuit. which may occur as a result in the case of an emergency. prevent thermal effects of arc faults The risk of fire resulting from incorrect electrical installation is significantly reduced.The reason for tripping is indicated by an LED colour code on the front of the device. BESTAFDD 1 are compact combination devices with a triple function: arc fault detection, line protection and residual current trip.They protect systems in the event of a short-circuit and overload as per the requirements of VDE o1o Part 430, and protect persons,farm animals and material items in the event of earth leakage currents as per VDE 0100 Part 410.The RCBO component works dependent of the mains voltage.Residual current type A allows the detection of sinusoidal AC currents and pulsating DC residual currents. The contact position indicators and the display tripped by residual current provide a quick overview of the operating status of the device. The devices up to 40 A devices have a rated switching capacity of 6 kA.The line protection with characteristic B ensure standard protection for lighting and socket circuits. Devices in standard design are intended for monitoring circuits with a rated voltage of 230 V and a rated frequency of 50 Hz.

Features

combination device with three functions, 1P+N(1Module), Variable neutral-pole position, AFDD as per IEC/EN-62606, RCBO as per IEC/ EN61009, continuous self-monitoring, mains-voltage-dependent tripping of the RCCB/MCB functions. Display AFDD reason for tripping. Contact position indicators, Residual current tripping indicator, compact design for all rated currents, high short-circuit resistance, strain-relief clamps with protection against wires being lodged behind them, tri-stable snap-in slider for easy mounting and removal.

Applications

Protection of circuits in residential and purpose-built buildings as well as industrial facilities with TN-S and TN-C-S networks. Not permitted for use in systems with TN-C networks; not permitted for protecting circuits in which the power electronics equipment may cause smooth DC residual currents or residual currents with frequencies not equal to 50 Hz.

Product Description:

Combined AFDD RCBO is a reliable and safe device used to detect and interrupt arc fault in residential and commercial buildings. It is designed for a 35 mm mounting rail, with a thermoplastic housing material and a rated voltage of 240V. With a rated insulation voltage of 250V, it is able to support rated current up to 40A. The device is composed of two components: an Arc Fault Detection Device (AFDD) and a Residual Current Circuit Breaker with Overload (RCBO) protection. The AFDD is used to detect and interrupt arc fault by monitoring electrical current for any anomalous behavior that could indicate an arc fault. If an arc fault is detected, the RCBO will block the current to avoid any further damage. The Combined AFDD RCBO is an effective solution to ensure maximum safety in both residential and commercial buildings.

Features:

• Product Name: Combined AFDD RCBO

• Rated Frequency: 50/60Hz

• Storage temperature: -35℃ ….60℃

• Rated short-circuit current: 6KA

• Degree of pollution according to EN 60664: 2

• Faults detection: Arc fault detection devices (AFDD)

• Protection: Residual current circuit breaker (RCBO)

Applications:

HAROK's BESTAFDD 1 combined AFDD RCBO is designed and manufactured to meet the highest standards in safety and reliability. It is compliant with the EN 60664 standard for a Degree of pollution of 2 and has a rated voltage of 240V. It is designed to provide reliable protection when it comes to mechanical endurance and electrical performance, allowing for a minimum of 20000 switching cycles. It is also classified by power limitation category 3 and features a high Protection Level of IP20 (IP40 when installed). Thus, the BESTAFDD 1 combined AFDD RCBO is the ideal solution for many industrial and commercial applications, including but not limited to lighting, heating, ventilation, air conditioning, and other electrical installations.

Customization:

Brand Name: HAROK
Model Number: BESTAFDD 1
Place of Origin: CHINA
Installation type: Mounting Rail (35 Mm)
Housing material: Thermoplastic
Product Name: Combined AFDD RCBO
Rated residual current I∆n: 10mA, 30mA
Rated short-circuit current: 6KA

HAROK BESTAFDD 1 Combined AFDD RCBO is specially designed for fire protection switch, sensitive to pulsating and alternating currents Type A, RCBO 10mA/30mA. It is made of thermoplastic housing and can be mounted on the 35 Mm mounting rail. The rated residual current I∆n is 10mA, 30mA while the rated short-circuit current is 6KA.

Packing and Shipping:

The Combined AFDD RCBO should be packaged and shipped carefully to prevent any damage. The following steps should be taken:

• Put the Combined AFDD RCBO in a box, and fill the empty space with Bubble wrap to protect the product from shocks.

• Secure the box with adhesive tape.

• Label the box with the product name, the address and contact information of the recipient.

• Ship the box with a reputable courier service.
