| Brand Name | HAROK |
|---|---|
| Model Number | BESTAFDD 1 |
| Minimum Order Quantity | 3000 |
| Poles | 1P+N(1Module) | Rated Current (AC) | 32A |
|---|---|---|---|
| Tripping | B, C | Operating Frequency | 50Hz |
| Rated Voltage(AC) | 240V | Rated Short-circuit Current | 6KA |
| High Light | 6KA Combined AFDD RCBO,6KA rcbo with afdd,Combined AFDD RCBO 32A | ||

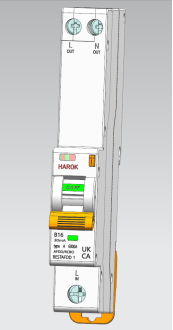

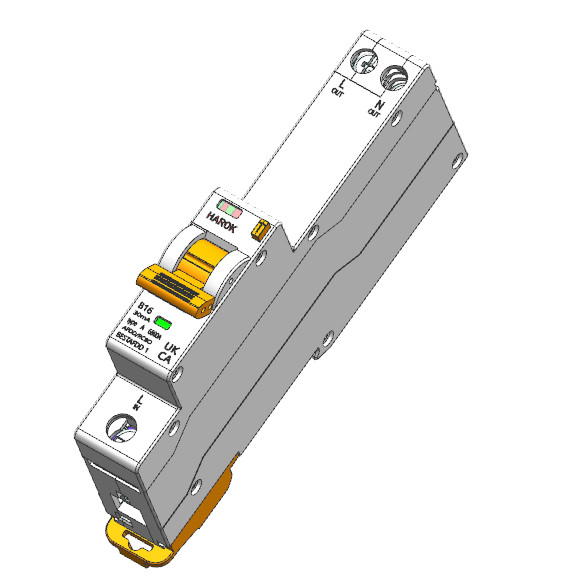

Arc fault detection devices BESTAFDD 1
Residual current operated circuit-breaker with integral overcurrent
protection as Fire protection switch,sensitive to pulsating and
alternating currents Type A
Function
Arc-fault detection devices(Fire protection switch, AFDD) are designed to protect serial and parallel fault arcs in accordance with EN62606(DIN VDE 0100-420).They are commonly referred to as fire protection switches. They must be installed in permanently installed final circuits up to 40A. for example. facilities at risk of fire or public institutions.They are also recommended for bedrooms and for final circuits with high connection loads.The devices detect high-frequency arc faults, such as those occurring as a result of cabling defects. The early recognition and switching off of the final circuit. which may occur as a result in the case of an emergency. prevent thermal effects of arc faults The risk of fire resulting from incorrect electrical installation is significantly reduced.The reason for tripping is indicated by an LED colour code on the front of the device. BESTAFDD 1 are compact combination devices with a triple function: arc fault detection, line protection and residual current trip.They protect systems in the event of a short-circuit and overload as per the requirements of VDE o1o Part 430, and protect persons,farm animals and material items in the event of earth leakage currents as per VDE 0100 Part 410.The RCBO component works dependent of the mains voltage.Residual current type A allows the detection of sinusoidal AC currents and pulsating DC residual currents. The contact position indicators and the display tripped by residual current provide a quick overview of the operating status of the device. The devices up to 40 A devices have a rated switching capacity of 6 kA.The line protection with characteristic B ensure standard protection for lighting and socket circuits. Devices in standard design are intended for monitoring circuits with a rated voltage of 230 V and a rated frequency of 50 Hz.
Features
combination device with three functions, 1P+N(1Module), Variable neutral-pole position, AFDD as per IEC/EN-62606, RCBO as per IEC/ EN61009, continuous self-monitoring, mains-voltage-dependent tripping of the RCCB/MCB functions. Display AFDD reason for tripping. Contact position indicators, Residual current tripping indicator, compact design for all rated currents, high short-circuit resistance, strain-relief clamps with protection against wires being lodged behind them, tri-stable snap-in slider for easy mounting and removal.
Applications
Protection of circuits in residential and purpose-built buildings as well as industrial facilities with TN-S and TN-C-S networks. Not permitted for use in systems with TN-C networks; not permitted for protecting circuits in which the power electronics equipment may cause smooth DC residual currents or residual currents with frequencies not equal to 50 Hz.
| Performance | |
| Series | BESTAFDD 1 |
| Number of poles | 1P+N(1Module) |
| Rated current (AC) | 32A |
| Residual current type | A |
| Rated residual current I∆n | 10mA, 30mA |
| min. Operating voltage range of test circuit | 196V |
| max. Operating voltage range of test circuit | 253V |
| Tripping characteristic | B, C |
| Operating frequency | 50Hz |
| Rated impulse withstand voltage | 4 kV |
| load circuit | |
| Specification | load disconnect contact |
| Rated voltage(AC) | 240 V |
| Rated short-circuit current | 6KA |
| Surge current strength | 0.25kA |
| max. total rated switching capacity | 6kA |
| Rated insulation voltage | 250V |
| Current heat loss per current path | 3W |
| short-circuit backup-fuse SCPD | 100A |
| Back-up fuse type | gG |
| Overvoltage class | III |
| screw-type terminal top, bottom(load circuit) | |
| Neutral conductor position | left, right |
| max. Connection C1cable length | 70m (between the distribution board and the outer socket) |
| Clamping area | 1 mm² .… 25 mm² |
| Tightening torque | 2 Nm.…. 2.4 Nm |
| General data | |
| Mechanical endurance | min. 20000 switching cycles |
| Electrical endurance | min.400o switching cycles |
| Storage temperature | -35℃ ….60℃ |
| Ambient temperature | -25°℃… 40℃ |
| Housing type | distribution board housing |
| Installation type | Mounting rail (35 mm) |
| Housing material | thermoplastic |
| Protection class | IP20(installed:IP40) |
| Design requirements/Standards | EN62606, EN61009-1 |
| Power limitation category | 3 |
Degree of pollution according to EN 60664 | 2 |
| Certification | UKCA, CE |
Combined AFDD RCBOis a residual current operated circuit-breaker with integral overcurrent protection as Fire protection switch,sensitive to pulsating and alternating currents Type A. This RCBO is designed with a high-performance protection level of IP20(installed:IP40), a mounting rail of 35mm, a rated insulation voltage of 250V, tripping characteristic of B, C, and a rated voltage(AC) of 240V. It is designed to provide reliable protection against fire and electric shock, even under abnormal conditions, and is suitable for a variety of electrical occasions.
Product Name: Combined AFDD RCBO
Rated Current: 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A
Housing material: Thermoplastic
Electrical endurance: Min.4000 Switching Cycles
Rated insulation voltage: 250V
Rated residual current I∆n : 10mA, 30mA
Arc fault detection devices (AFDD) for enhanced safety
The HAROK BESTAFDD 1 combined AFDD RCBO is a reliable and powerful product, manufactured in China, with a degree of pollution according to EN 60664 of 2 and certification of UKCA and CE. It is designed for installation on a Mounting Rail of (35 Mm). The rated residual current I∆n of this product is 10mA and 30mA, and it has a tripping characteristic of B and C. It is widely used in various fields, such as commercial, industrial and residential, to provide protection against electric shock, short circuit, overload, and other related hazards.
This combined AFDD RCBO is highly reliable and safe, making it an ideal choice for various applications. It provides superior protection against electric shock, short circuit and overload, and it is designed for quick and easy installation. It is an efficient and cost-effective way to reduce the risk of electric shock and to ensure a safe and secure environment for both the user and the surrounding environment.
The HAROK BESTAFDD 1 combined AFDD RCBO is a must-have for any electrical project. Its superior protection and safety features make it an ideal choice for any installation. With its reliable performance and cost-effectiveness, this product is a great choice for any application.
| Technical Parameter | Value |
|---|---|
| Rated Frequency | 50/60Hz |
| Rated Current | 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A |
| Mechanical endurance | Min. 20000 Switching Cycles |
| Certificate | UKCA, CE |
| Housing material | Thermoplastic |
| Power limitation category | 3 |
| Rated short-circuit current | 6KA |
| Housing type | Distribution Board Housing |
| Tripping characteristic | B, C |
| Protection Level | IP20 (installed: IP40) |
| Arc fault detection devices | Residual current operated circuit-breaker with integral overcurrent protection as Fire protection switch, sensitive to pulsating and alternating currents Type A, Arc fault detection devices |
Brand Name: HAROK
Model Number: BESTAFDD 1
Place of Origin: CHINA
Rated Frequency: 50/60Hz
Rated insulation voltage: 250V
Housing type: Distribution Board Housing
Tripping characteristic: B, C
Rated residual current I∆n : 10mA, 30mA
HAROK BESTAFDD 1 Combined AFDD RCBO is a Residual current operated circuit-breaker with integral overcurrent protection as Fire protection switch,sensitive to pulsating and alternating currents Type A. This product is designed and manufactured to ensure high safety and reliability. It is suitable for the rated insulation voltage of 250V and rated frequency of 50/60Hz. The tripping characteristics are B and C, and the rated residual current I∆n is 10mA and 30mA. It is equipped with a Distribution Board Housing.
