Place of Origin | CHINA |
Brand Name | HAROK |
Model Number | VKC Series |
Minimum Order Quantity | 3000 |
PRODUCT DETAILS
Standardcontrol Voltage(Ue) | 20-230V/50-60Hz | Ambient Temperature | -25~+55 |
Thermal Continuous Current(lth) | 24A, 40A, 63A | Connection Capacity | Tunnel Terminal For Cables Up To 25mm |
Current Ratings For AC1 | 24A, 40A, 63A | Pole Number | 4 (either As Main Or Auxiliary Contacts) |
High Light | 40A 3 Pole Contactor , Modular Contactor In HVAC | ||
PRODUCT DESCRIPTION
Function
The function of an AC contactor is to control the flow of electrical current to an electrical load. When a control signal is received, the AC contactor closes its contacts, allowing electrical current to pass through to the load. When the control signal is removed, the AC contactor opens its contacts, interrupting the flow of electrical current to the load. AC contactors are commonly used in HVAC systems, electric motors, and other industrial applications.
Application
Modular contactors are essential for control and automation duties in dwellings offices shops and hospitals. They are particularly suitable for switchinglighting installations, heat pumps, night storage heating, airconditioned plant and for other devices in building automation.
Technical data
Standardcontrol voltage(Ue): | 20-230V/50-60Hz |
Ambient temperature: | -25~+55 |
Thermal continuous current(lth): | 24A, 40A, 63A |
Connection capacity: | tunnel terminal for cables up to 25mm |
Current ratings for AC1: | 24A, 40A, 63A |
Pole number: | 4 (either as main or auxiliary contacts) |
Width in 17.5mm modules: | 24A 35mm (2modules), 40A 52.5mm (3modules), 63A2.5mm (3modules) |
Back up fuse g1maxratings | 35A, 63A, 80A |
Mechanicalendurance | 10 million cycles |
Electricalendurance | 1 million cycles |
Difference between contactor and relay
Contactors and relays are electrically operated switches used for the control and switching of loads. The difference between them primarily lies in the load current that they can handle, where they are used, and how they are used in a circuit. This article can give you a clear picture of the difference between contactor and relay.
Constructional Features:

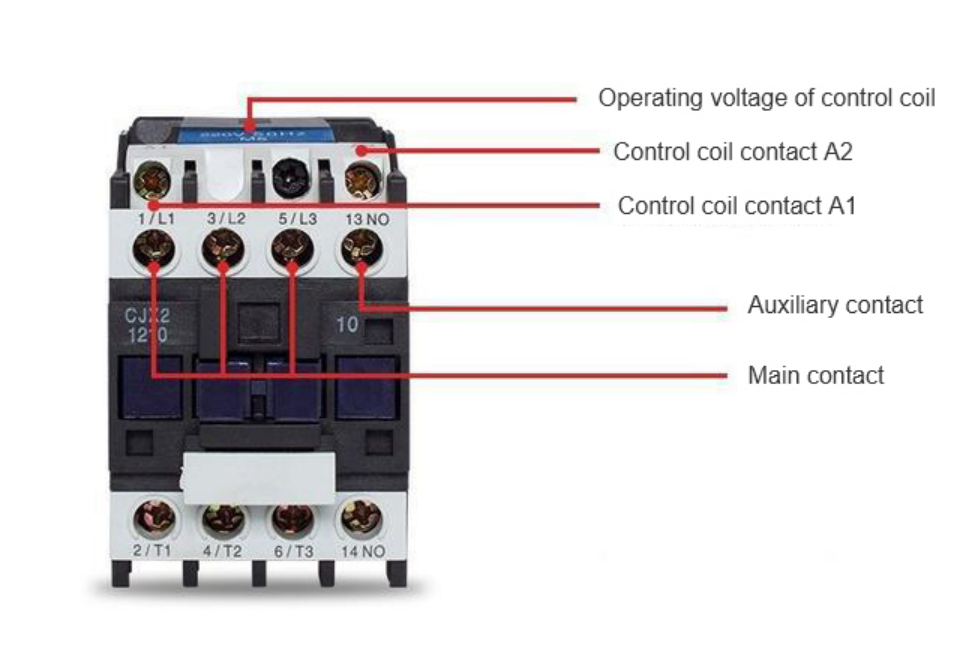

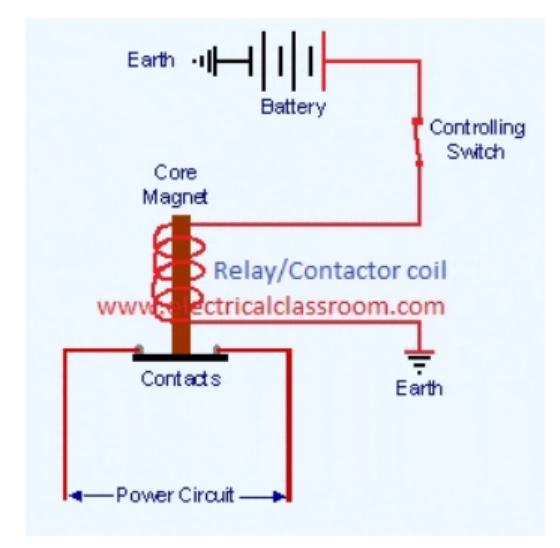

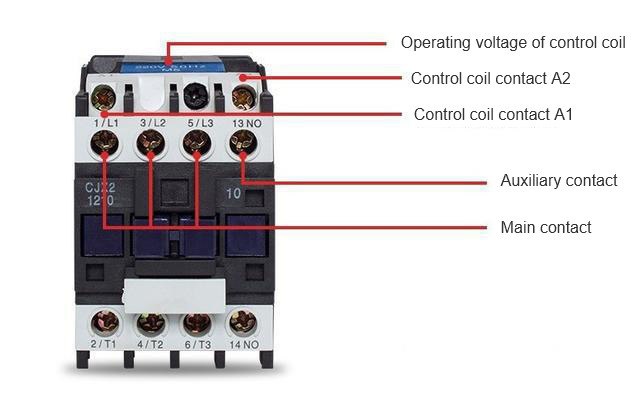

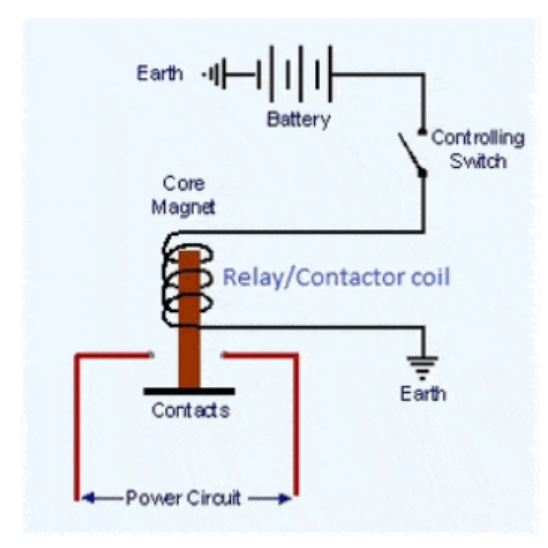

Contactors and relays have similar construction. Both have an external envelope to protect all the internal parts from the external environment. An electromagnetic coil is provided for the opening and closing of contacts. The contacts are opened and closed by exciting this electromagnetic coil.
Operation of Relays and Contactors:
A Contactor is used for switching motors, capacitors, lights, etc, that drains very high current. It has at least a single pair of three-phase input and output contacts. It would be normally open. Some contactors come with additional auxiliary contacts that may be either NO or NC. These auxiliary contacts get activated along with the main contacts. Switching is achieved by energization and De-energization of the contactor coils. They are chosen based on the current ratings of the load. Contactors require an additional supply (either AC or DC depending upon the type of contactor we use) for excitation.
A relay consists of at least two contacts and an excitation coil. These contacts may be normally open or normally closed. These contacts are closed or opened by exciting the coil. Relays are used for switching control circuits and cannot be used for power switching with relatively higher ampacity. It can be used for switching small lights, sirens, indication lamps, etc.
The key difference between contactor and relay
Relays are switching devices used to control a circuits, a low power devices or multiplying the number of contacts available.
Contactors are switching devices used to switch on/off heavy electrical loads such as electric motors, power factor correction capacitors, lights, reactors, etc.
