PRODUCT DESCRIPTION

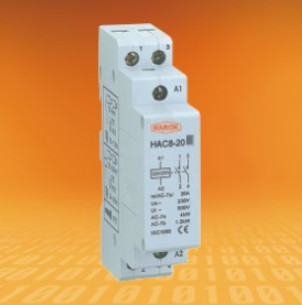

HSH Series AC contactor High-Quality Industrial Electric Controls, 1.2kg Weight, 1 Million Cycles Electrical Endurance

Application
Modular contactors are essential for control and automation duties in dwellings offices shops and hospitals. They are particularly suitable for switchinglighting installations, heat pumps, night storage heating, airconditioned plant and for other devices in building automation.

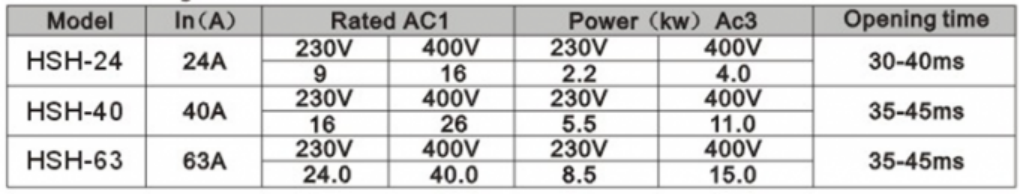

Technical data
Standardcontrol voltage(Ue): 20-230V/50-60Hz
Ambient temperature: -25~+55
Thermal continuous current(lth): 24A, 40A, 63A
Connection capacity: tunnel terminal for cables up to 25mm
Current ratings for AC1: 24A, 40A, 63A
Pole number: 4 (either as main or auxiliary contacts)

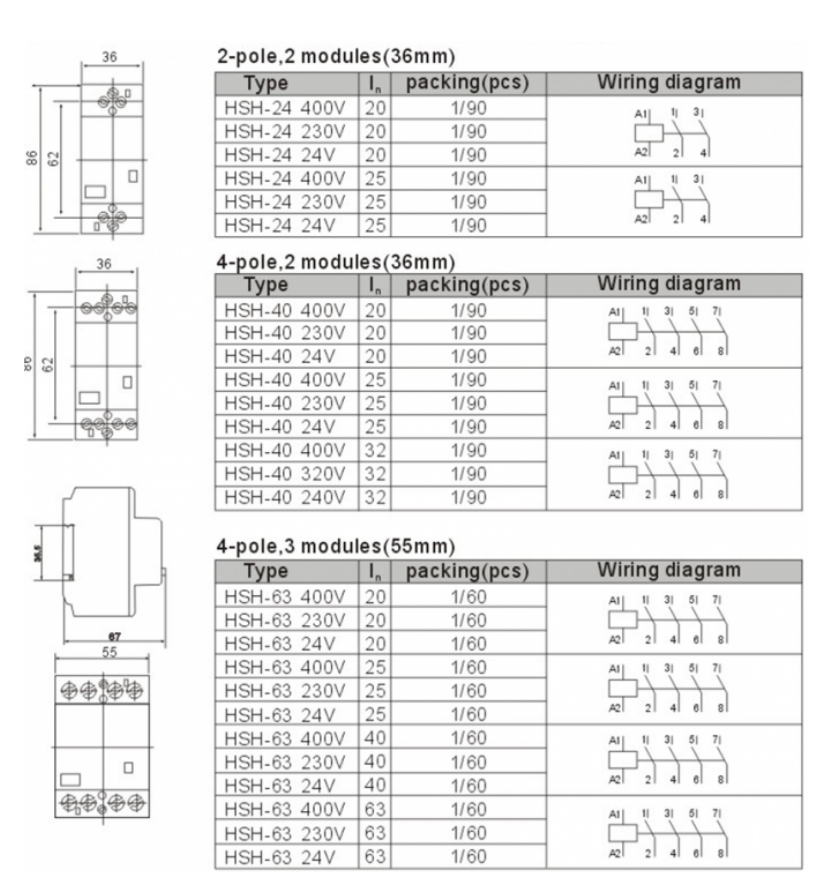

Width in 17.5mm modules: 24A 35mm (2modules), 40A 52.5mm (3modules), 63A2.5mm (3modules)
Back up fuse g1maxratings: 35A, 63A, 80A
Mechanicalendurance: 10 million cycles
Electricalendurance: 1 million cycles

Solenold system

Product Description:

Industrial Electric Controls is a high-performance modular contactor with a voltage of 230V and a frequency of 50Hz. It is equipped with a tunnel terminal connection capacity, providing a quick response time of 0.5s. This compact and lightweight contactor weighs only 1.2kg, making it ideal for a variety of industrial applications. The modular contactor also features AC contactors that can be used to control and regulate electrical loads.

This Industrial Electric Controls contactor is designed to provide superior safety and control for your electrical system. It is equipped with trip-free operation and a manual/automatic switch to allow for easy switching between manual and automatic operation. The contactor is also designed with an overload protection feature to ensure your electrical system is protected from any potential overloads. In addition, this contactor is designed with a current limit switch to limit the current supplied to the connected loads.

Overall, Industrial Electric Controls provides an excellent contactor that is suitable for a variety of industrial applications. With its modular design, quick response time, overload protection, and current limit switch, this contactor is an ideal choice for anyone looking for a reliable and efficient solution for their industrial electrical needs.

Features:

· Product Name: AC Contactor

· Humidity: 20%-90%RH

· Connection Capacity: Tunnel Terminal

· Protection Grade: IP65

· Response Time: 0.5s

 Applications:

Industrial Electric Controls from HAROK are designed to provide reliable control and switching of AC circuit for a variety of applications. The modular contactor series VKC1-D is a reliable and cost-effective solution for industrial, commercial, and residential applications. With its CE certification, the contactor is built with high quality aluminum alloy material and features a 4-pole design with 10 million mechanical cycle endurance. It has a weight of 1.2 kilograms and can be ordered in minimum quantities of 1000. Delivery of the contactor is usually within 4-6 weeks after payment, with payment terms of FOB NINGBO or SHANGHAI. This Magnetic Contactor can be used for controlling and switching AC circuits, making it a suitable choice for a variety of applications. It is also one of the most popular AC Contactors on the market.

Technical Parameters:

 Customization:

Industrial Electric Controls: HAROK VKC1-D

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1000

Delivery Time: 4-6 weeks after payment

Payment Terms: FOB NINGBO or SHANGHAI

Connection Capacity: Tunnel Terminal

Frequency: 50Hz

Response Time: 0.5s

Protection Grade: IP65

Pole Numble: 4

Keywords: AC Contactor, Magnetic Contactor, Magnetic Contactor

Packing and Shipping:

Industrial Electric Controls Packaging and Shipping:

· Ensure all products are packaged securely to avoid damage during shipping.

· Ensure that all products are clearly labeled with the correct shipping information.

· Establish and maintain proper shipping routing and schedule.

· Schedule and coordinate trucking services for product delivery.

· Inspect all shipments prior to shipping to ensure that they are in good condition.

· Keep accurate records of all shipments.
