Arc fault detection devices BESTAFDD 1

Residual current operated circuit-breaker with integral overcurrent

protection as Fire protection switch,sensitive to pulsating and

alternating currents Type A

Function

Arc-fault detection devices(Fire protection switch, AFDD) are designed to protect serial and parallel fault arcs in accordance with EN62606(DIN VDE 0100-420).They are commonly referred to as fire protection switches. They must be installed in permanently installed final circuits up to 40A. for example. facilities at risk of fire or public institutions.They are also recommended for bedrooms and for final circuits with high connection loads.The devices detect high-frequency arc faults, such as those occurring as a result of cabling defects. The early recognition and switching off of the final circuit. which may occur as a result in the case of an emergency. prevent thermal effects of arc faults The risk of fire resulting from incorrect electrical installation is significantly reduced.The reason for tripping is indicated by an LED colour code on the front of the device. BESTAFDD 1 are compact combination devices with a triple function: arc fault detection, line protection and residual current trip.They protect systems in the event of a short-circuit and overload as per the requirements of VDE o1o Part 430, and protect persons,farm animals and material items in the event of earth leakage currents as per VDE 0100 Part 410.The RCBO component works dependent of the mains voltage.Residual current type A allows the detection of sinusoidal AC currents and pulsating DC residual currents. The contact position indicators and the display tripped by residual current provide a quick overview of the operating status of the device. The devices up to 40 A devices have a rated switching capacity of 6 kA.The line protection with characteristic B ensure standard protection for lighting and socket circuits. Devices in standard design are intended for monitoring circuits with a rated voltage of 230 V and a rated frequency of 50 Hz.

Features

combination device with three functions, 1P+N(1 Module), Variable neutral-pole position, AFDD as per IEC/EN-62606, RCBO as per IEC/ EN61009, continuous self-monitoring, mains-voltage-dependent tripping of the RCCB/MCB functions. Display AFDD reason for tripping. Contact position indicators, Residual current tripping indicator, compact design for all rated currents, high short-circuit resistance, strain-relief clamps with protection against wires being lodged behind them, tri-stable snap-in slider for easy mounting and removal.

Applications

Protection of circuits in residential and purpose-built buildings as well as industrial facilities with TN-S and TN-C-S networks. Not permitted for use in systems with TN-C networks; not permitted for protecting circuits in which the power electronics equipment may cause smooth DC residual currents or residual currents with frequencies not equal to 50 Hz.

Product Description:

Arc Fault Detection Device (AFDD) is a state-of-the-art safety device designed to detect arc faults in electrical circuits. It offers superior performance in terms of reliability, accuracy, and ease of use. With its advanced features, this device can quickly detect arc faults in any circuit, providing safe and reliable operation.

AFDD is designed to detect arc faults in all types of electrical circuits, ranging from low-voltage to high-voltage. It has a wide operating voltage range, with a minimum of 196V. The device also has a low operating frequency of 50Hz, making it suitable for use in all types of electrical circuits. Additionally, it can withstand a wide range of ambient temperatures, ranging from -25°℃ to 40°℃.

The device is designed with a high pollution degree and can withstand up to EN 60664 pollution degree 2. For added safety and reliability, it features a high mechanical endurance of up to 20000 switching cycles. This ensures that the device can be used in even the most demanding conditions.

The Arc Fault Detection Device is an essential safety device for any electrical circuit. With its advanced features and superior performance, it provides reliable and safe operation, ensuring that your electrical circuits are protected from arc faults.

Features:

• Product Name: Fire Protection Switch Arc Fault Detection Devices (AFDD)

• Rated current (AC): 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A

• Rated impulse withstand voltage: 4 KV

• Max. Operating voltage range of test circuit: 253V

• Number of poles: 1P+N(1Module)

Applications:

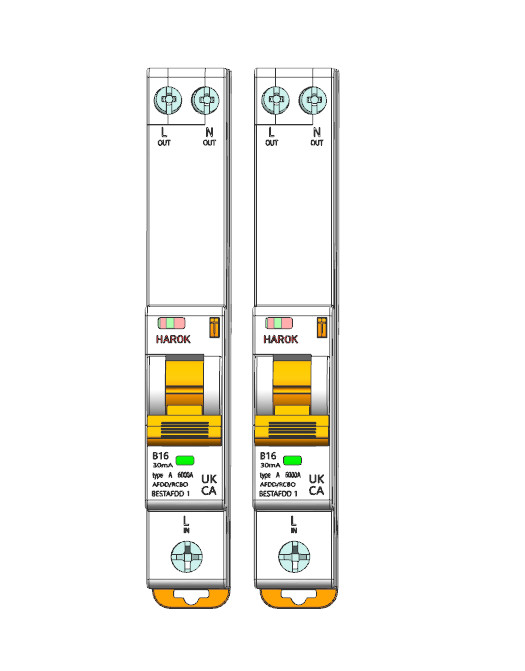

HAROK's BESTAFDD 1, a residual current operated circuit-breaker with integral overcurrent protection as Fire protection switch,sensitive to pulsating and alternating currents Type A, is the perfect choice for those who require a reliable, durable, and efficient Arc Fault Detection Device. It is made in CHINA and features a superior mechanical endurance of minimum 20000 Switching Cycles, and is available for either left or right neutral conductor position. It also provides a rated residual current I∆n of 10mA and 30mA, and has a pollution degree of 2 according to EN 60664.

Boasting superior performance and features, HAROK's BESTAFDD 1 is the perfect Arc Fault Detection Device for both commercial and residential applications. With its advanced and reliable design, this device is perfect for ensuring safety and fire protection. Whether you need it for your home, office or any other place, you can trust HAROK's BESTAFDD 1 to provide the perfect solution.

Technical Parameters:

Customization:

Packing and Shipping:

The Arc Fault Detection Device is carefully packaged and shipped to ensure it arrives safely and securely to its destination.

The Arc Fault Detection Device is packaged in a sturdy cardboard box and is properly protected with bubble wrap. The box is sealed with strong packing tape to ensure it is securely closed.

The Arc Fault Detection Device is shipped via a reliable shipping carrier with tracking and delivery confirmation. This ensures that the package is tracked from the moment it is shipped until it arrives at its destination.
